NC Hydraulic Press Brake
Standard Features
- Levers multiply force allowing smaller cylinders
- Ram parallel motion (synchronizing) by heavy duty torsion tube
- Main drive motor complete with hydraulic power pack
- Fine stroke adjustment by linear scale
- Three speed stroke cycle with fast approach-return and slow pressing
- Different Stroke for set-up trials (inching), production runs
- Pair of front sheet supports sheet while loading
- Movable operator console with on-off & emergency push buttons cycle selector
- Switch, up down foot switch for operation from convenient location
- Slide mounted control panel housing main electrical
- One suitable 4 way Die & Punch
- Centralized lubrication system with auto pump
- Servo CNC back gauge with precision ball screw, linear guide
- Automatic programmable back gauge retract feature
- CNC CONTROLLER- cvbelec
- Stroke depth measurement through high precision linear scales
Structure

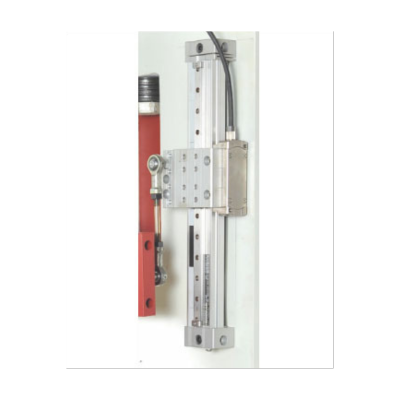

High Resolution Linear Scale
Provide Precision dual ram feedback

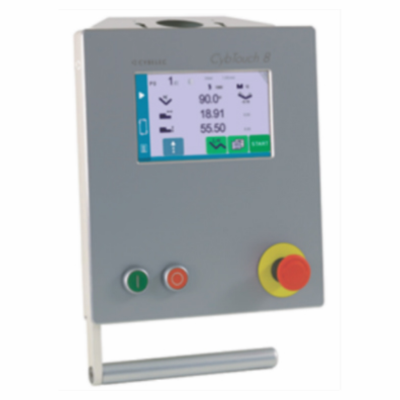

CNC Controller Cybtouch †8P
7” Touchscreen Controller ( X & Y Axis ), Easy Operating, User Friendly, Easy Communication

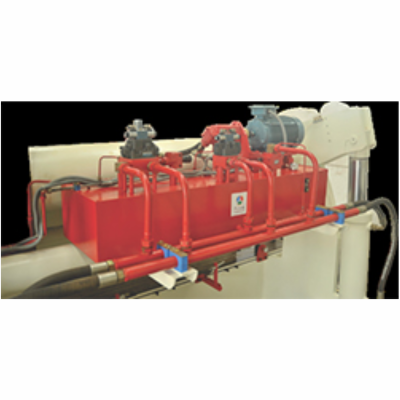

Reliable Hydraulic System
International reputation hydraulics components Specially designed manifolds gives smoth noiseless & jerkless function

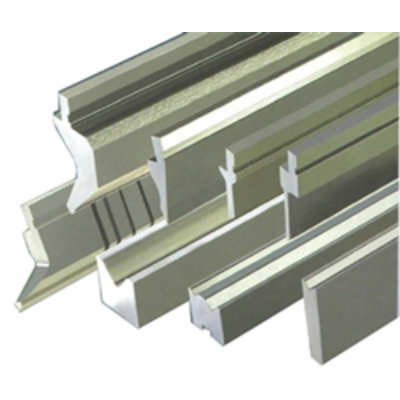

Quality Toolings & Accessories (Optional)
Purvaj offer complete line of high accuracy certified premium toolings, European style precision ground toolings and new standard precision tooling harden and grounded tooling for long life & high accuracy

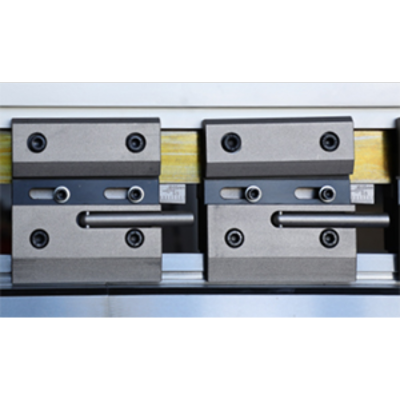

Quick Release Clamp (Standard)
A cost effective efficient solution for quick tool changes.

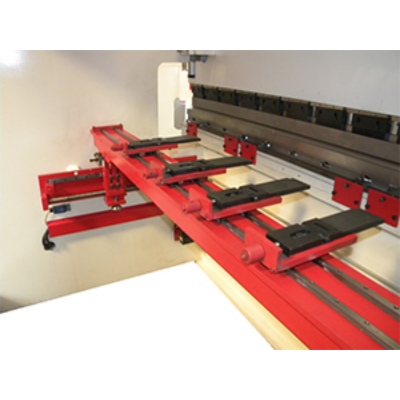

Standard Backgauge
CNC servo position control on X axis and Z1 / Z2 are move on LM guide Servo CNC back gauge with Precision ball screw and linear guide way ensures maximum rigidity for high productivity speed and high accuracy.
Auto Crowning System (Optional)
Auto Crowning system for precise degree

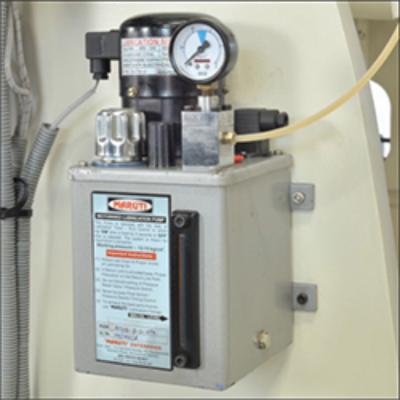

Auto Lubrication System
Centralized Lubrication system with auto control

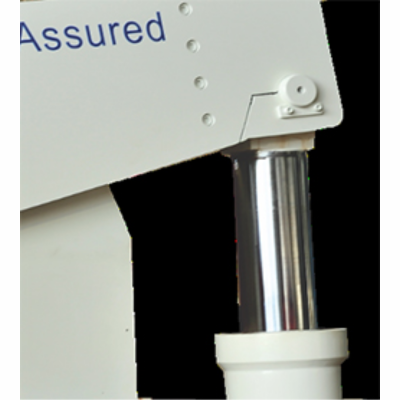

Rear Cylinder Design
Rear cylinder design using mechanical advantages through lever, reduces the cylinder size which enable to use medium pressure hydraulic component and also improves stoke accuracy
